The Adaptive Computing Acceleration Platform (ACAP) (Model: VD100) of the ALINX Versal AI Edge series has been officially released. In order to let you quickly understand this development platform, we have written this user manual.

This Versal AI Edge development platform uses a core board plus expansion board model to facilitate users’ secondary development and utilization of the core board. In the baseboard design, we used 1 1 2-pin PMOD interface, 2 10G optical fiber interfaces, 2 Ethernet ports, 2 MIPI interfaces, 1 USB2.0 interface, 1 UART interface and 1 PCIe3.0X4 interface. It meets users’ requirements for high-speed data transmission and exchange and is a “professional-level” and “all-around-level” development platform for data communications. I believe that such a product is very suitable for students, engineers and other groups engaged in artificial intelligence, data acceleration and video image processing.

Development board introduction

Here, a brief function introduction of this Versal AI VD100 platform is given.

The entire structure of the development board is designed based on our consistent core board + expansion board model. The core board and the expansion board are connected using high-speed inter-board connectors.

The core board is mainly composed of Versal AI VE2302 + 4 DDR4 + QSPI FLASH + EMMC. The VE2302 chip of the Versal AI Series we selected is packaged in SFVA784. The data bit width of VE2302 and DDR4 is 64 bits, the capacity of DDR4 is up to 4GB, and the data rate is 3200bps. Meet the need for high buffers during data processing. In addition, there are 8G EMMC and 512Mbit QSPI FLASH on the core board for system startup and data storage.

The base board is equipped with a wealth of peripheral interfaces. The following figure is a schematic structural diagram of the entire VD100 platform:

Through this schematic diagram, we can see the functions that our development platform can achieve.

•  Versal AI VE2302 core board

It is composed of VE2302+4GB DDR4+8G EMMC+512Mb QSPI FLASH, and there are two high-precision Sitime crystal oscillators, one is single-ended 33.3333MHz, the other is differential 200MHz, providing stable clock input for the VE2302 system and logic unit.

• 1 0/100M /1000M Ethernet RJ-45 interface

2-way Gigabit Ethernet interface, the chip uses Jinglue Company’s JL2121 Ethernet PH Y chip to provide users with network communication services. JL2121 The chip supports 10/100/1000 Mbps network transmission rate; full duplex and adaptive.

• USB Uart debugging interface

1-way Uart to USB interface, used to communicate with the computer to facilitate user debugging. The serial port chip uses the USB- UAR chip of Silicon Labs CP210 2 GM , and the USB interface uses the MINI USB interface.

• PCIe x 4 interface

Supports PCI Express 3.0 standard and provides standard PCIe x 4 high - speed data transmission interface.

• Micro SD card holder

1-way Micro SD card holder for storing operating system images and file systems .

• USB2.0 interface

1 high-speed USB2.0 interface can be used to connect the development board to USB peripherals such as mouse, keyboard, and USB flash drive.

• MIPI interface

2-way MIPI interface, supports MIPI 4xLane, can be connected to ALINX MIPI camera (AN5010) .

• LVDS interface

1-way LVDS interface, used to connect to ALINX’s LVDS display.

• 2-way SFP+ optical fiber interface

The 2-channel high-speed transceiver of the GTY transceiver is connected to the sending and receiving of 2 optical modules to realize 2-channel high-speed optical fiber communication interface. The optical fiber data communication reception and transmission speed of each channel is as high as 12.5Gb/s.

• CAN communication interface

1-way CAN/CAN FD bus interface uses TI’s TJA1051T chip, and the interface uses a 3-Pin green terminal block .

• 12-pin PMOD expansion port

One 12-pin 2.54mm pitch expansion IO port is reserved. The expansion port includes 2 channels of 3.3V power supply, 2 channels of ground, and 8 channels of 3.3V IO ports.

• JTAG port

10-pin 2.54mm standard JTAG port for downloading and debugging VE2302 programs;

• button

There are 2 user buttons on the expansion board, one connected to the MIO of the PS and one connected to the IO of the PL;

• LED light

5 LEDs (2 on the core board and 3 on the expansion board);

VE2302 core board

Introduction

The V100 ( core board model, the same below ) core board is a high-performance core board developed based on the XCVE2302-SFVA784-1LP-ES chip of XILINX’s Versal ACAP series. It has high performance, low latency, edge computing, and low power. It has characteristics such as high power consumption and is suitable for use in data centers, video image processing, high-speed data processing, etc.

This core board uses 4 pieces of MT40A512M16LY-062E from MICRON.

This DDR4 chip has 64-bit data bus bandwidth and 4GB capacity; the maximum operating speed of DDR4 SDRAM can reach 1600MHz (data rate 3200Mbps). In addition, the core board also integrates two 256MBit QSPI FLASH and one 8GB EMMC chip for startup storage configuration and system files.

The PS side of this core board has expanded 53 1.8V level standard MIOs, and the PL side has expanded 22 3.3V level standard IOs, 54 1.8V level standard IO ports, and 30 1.2V level standard IOs. There are also 8 pairs of GTY high-speed RX/TX differential signals. Moreover, the wiring between the FPGA chip and the interface has been processed with equal length and differential processing, and the size of the core board is only 65*60 (mm), which is very suitable for secondary development.

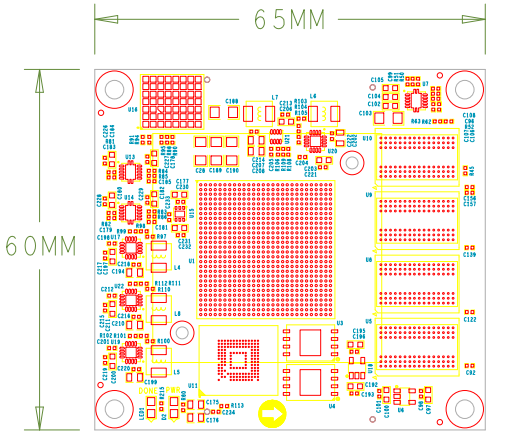

V100 core board front view

V100 core board back view

VE2302

As mentioned before, the Versal ACAP model we use is XCVE2302-SFVA784-1LP-ES, the speed level is 1, the operating temperature is 0~100 ℃ , and the package is SFVA784. The chip naming rules of Versal ACAP are as follows:

The VE2302 chip integrates 4 ARM Cortex™-A 72 processors and 2 Cortex -R5F processors , as well as 34 AI Engines-ML acceleration units and 464 DSP processing units. The internal resources of VE2302 are as follows:

Clock configuration

The V100 core board provides a reference clock and an RTC real-time clock for the PS system and PL logic parts respectively, so that the PS system and PL logic can work independently. The schematic diagram of the clock circuit design is shown in Figure 2-3-1 below :

Figure 2- 3-1 Core board clock source

PS system RTC real-time clock

The passive crystal Y1 on the core board provides a 3 2.768K Hz real-time clock source for the PS system . The crystal is connected to the RTC_PADI_503 and RTC_PAD O_503 pins of BANK503 of the VE2302 chip .

PS system clock source

1 crystal oscillator on the core board provides a 33.333MHz clock input to the PS system . The clock input is connected to the PS_REF_CLK_503 pin of BANK503 of the VE2302 chip.

PL system clock source

The board provides a differential 200MHz PL system clock source for the reference clock of the DDR4 controller. The crystal oscillator output is connected to the global clock (GC) of PL BANK701. This global clock can be used to drive the DDR4 controller and user logic circuits in the FPGA.

PL clock pin assignment:

Signal name	VE2302 pin name	VE2302 pin number
PL_CLK0_N	I O_L 24N_GC_XCC_N8P1_M0P103_701	AC23
PL_CLK0_P	IO_L 24P_GC_XCC_N8P0_M0P102_701	AB23

DDR4 DRAM

The V100 core board is equipped with 4 Micron 1GB DDR 4 chips, model MT40A512M16LY-062E . The 4 DDR4 chips are hung on the XPIO of BANK700, 701 and 702 to form a 64-bit data bus bandwidth and 4GB capacity . . DDR 4 SDRAM operates at a maximum speed of 1600 MHz (data rate 3200Mbps) . The specific configuration of DDR 4 SDRAM is shown in Table 2-4-1 below .

bit number	Chip model	capacity	factory
U5, U 8 , U 9, U10	MT40A512M16LY-062E	512M x 16bit	Micron

Table 2-4-1 DDR 4 SDRAM configuration

The hardware design of DDR4 requires strict consideration of signal integrity. We have fully considered matching resistors/terminal resistors, trace impedance control, and trace equal length control during circuit design and PCB design to ensure the high-speed and stable operation of DDR4. The hardware connection method of DDR4 is shown in Figure 2-4-1 :

Figure 2-4-1 DDR4 DRAM schematic part

DDR4 SDRAM pin assignment:

Signal name	Pin name	Pin number
PL_DDR4_A0	IO_L18P_XCC_N6P0_M0P36_700	AB12
PL_DDR4_A1	IO_L17N_N5P5_M0P35_700	AE22
PL_DDR4_A2	IO_L17P_N5P4_M0P34_700	AD22
PL_DDR4_A3	IO_L20P_N6P4_M0P40_700	AB15
PL_DDR4_A4	IO_L12P_GC_XCC_N4P0_M0P24_700	AD12
PL_DDR4_A5	IO_L26P_N8P4_M0P52_700	AE17
PL_DDR4_A6	IO_L24P_GC_XCC_N8P0_M0P48_700	AD16
PL_DDR4_A7	IO_L6N_GC_XCC_N2P1_M0P13_700	AG11
PL_DDR4_A8	IO_L25N_N8P3_M0P51_700	AE14
PL_DDR4_A9	IO_L19P_N6P2_M0P38_700	AB14
PL_DDR4_A10	IO_L21N_XCC_N7P1_M0P43_700	AB17
PL_DDR4_A11	IO_L25P_N8P2_M0P50_700	AE13
PL_DDR4_A12	IO_L0N_XCC_N0P1_M0P1_700	AH12
PL_DDR4_A13	IO_L24N_GC_XCC_N8P1_M0P49_700	AD15
PL_DDR4_CLK_N	IO_L15N_XCC_N5P1_M0P31_700	AD19
PL_DDR4_CLK_P	IO_L15P_XCC_N5P0_M0P30_700	AC19
PL_DDR4_BA0	IO_L20N_N6P5_M0P41_700	AC16
PL_DDR4_BA1	IO_L12N_GC_XCC_N4P1_M0P25_700	AD11
PL_DDR4_WE_B	IO_L16N_N5P3_M0P33_700	AD21
PL_DDR4_CAS_B	IO_L14N_N4P5_M0P29_700	AD17
PL_DDR4_CS_B	IO_L14P_N4P4_M0P28_700	AC17
PL_DDR4_ACT_B	IO_L18N_XCC_N6P1_M0P37_700	AC11
PL_DDR4_RAS_B	IO_L19N_N6P3_M0P39_700	AC13
PL_DDR4_BG0	IO_L21P_XCC_N7P0_M0P42_700	AB18
PL_DDR4_ODT	IO_L23N_N7P5_M0P47_700	AC22
PL_DDR4_CKE	IO_L23P_N7P4_M0P46_700	AB21
PL_DDR4_RST	IO_L25P_N8P2_M0P104_701	AC24
PL_DDR4_DQS0_N	IO_L9N_GC_XCC_N3P1_M0P19_700	AG16
PL_DDR4_DQS0_P	IO_L9P_GC_XCC_N3P0_M0P18_700	AG17
PL_DDR4_DQS1_N	IO_L3N_XCC_N1P1_M0P7_700	AH19
PL_DDR4_DQS1_P	IO_L3P_XCC_N1P0_M0P6_700	AG20
PL_DDR4_DQS2_N	IO_L6N_GC_XCC_N2P1_M0P67_701	AD27
PL_DDR4_DQS2_P	IO_L6P_GC_XCC_N2P0_M0P66_701	AC28
PL_DDR4_DQS3_N	IO_L3N_XCC_N1P1_M0P61_701	AF23
PL_DDR4_DQS3_P	IO_L3P_XCC_N1P0_M0P60_701	AF24
PL_DDR4_DQS4_N	IO_L15N_XCC_N5P1_M0P85_701	AA23
PL_DDR4_DQS4_P	IO_L15P_XCC_N5P0_M0P84_701	Y24
PL_DDR4_DQS5_N	IO_L21N_XCC_N7P1_M0P97_701	Y27
PL_DDR4_DQS5_P	IO_L21P_XCC_N7P0_M0P96_701	Y28
PL_DDR4_DQS6_N	IO_L0N_XCC_N0P1_M0P109_702	U28
PL_DDR4_DQS6_P	IO_L0P_XCC_N0P0_M0P108_702	U27
PL_DDR4_DQS7_N	IO_L9N_GC_XCC_N3P1_M0P127_702	N27
PL_DDR4_DQS7_P	IO_L9P_GC_XCC_N3P0_M0P126_702	P26
PL_DDR4_DM0	IO_L6P_GC_XCC_N2P0_M0P12_700	AG12
PL_DDR4_DM1	IO_L0P_XCC_N0P0_M0P0_700	AH13
PL_DDR4_DM2	IO_L9P_GC_XCC_N3P0_M0P72_701	AE28
PL_DDR4_DM3	IO_L0P_XCC_N0P0_M0P54_701	AD24
PL_DDR4_DM4	IO_L12P_GC_XCC_N4P0_M0P78_701	V22
PL_DDR4_DM5	IO_L18P_XCC_N6P0_M0P90_701	V28
PL_DDR4_DM6	IO_L3P_XCC_N1P0_M0P114_702	N28
PL_DDR4_DM7	IO_L6P_GC_XCC_N2P0_M0P120_702	U25
PL_DDR4_DQ0	IO_L8P_N2P4_M0P16_700	AF14
PL_DDR4_DQ1	IO_L10N_N3P3_M0P21_700	AG18
PL_DDR4_DQ2	IO_L8N_N2P5_M0P17_700	AG15
PL_DDR4_DQ3	IO_L10P_N3P2_M0P20_700	AF18
PL_DDR4_DQ4	IO_L7P_N2P2_M0P14_700	AF13
PL_DDR4_DQ5	IO_L11N_N3P5_M0P23_700	AF19
PL_DDR4_DQ6	IO_L7N_N2P3_M0P15_700	AG13
PL_DDR4_DQ7	IO_L11P_N3P4_M0P22_700	AE19
PL_DDR4_DQ8	IO_L2P_N0P4_M0P4_700	AH17
PL_DDR4_DQ9	IO_L4P_N1P2_M0P8_700	AG21
PL_DDR4_DQ10	IO_L2N_N0P5_M0P5_700	AH18
PL_DDR4_DQ11	IO_L4N_N1P3_M0P9_700	AH20
PL_DDR4_DQ12	IO_L1P_N0P2_M0P2_700	AH14
PL_DDR4_DQ13	IO_L5N_N1P5_M0P11_700	AH22
PL_DDR4_DQ14	IO_L1N_N0P3_M0P3_700	AH15
PL_DDR4_DQ15	IO_L5P_N1P4_M0P10_700	AG22
PL_DDR4_DQ16	IO_L8N_N2P5_M0P71_701	AF26
PL_DDR4_DQ17	IO_L7N_N2P3_M0P69_701	AE26
PL_DDR4_DQ18	IO_L10N_N3P3_M0P75_701	AH27
PL_DDR4_DQ19	IO_L8P_N2P4_M0P70_701	AE27
PL_DDR4_DQ20	IO_L11N_N3P5_M0P77_701	AG27
PL_DDR4_DQ21	IO_L7P_N2P2_M0P68_701	AD26
PL_DDR4_DQ22	IO_L11P_N3P4_M0P76_701	AG26
PL_DDR4_DQ23	IO_L10P_N3P2_M0P74_701	AG28
PL_DDR4_DQ24	IO_L1N_N0P3_M0P57_701	AE24
PL_DDR4_DQ25	IO_L1P_N0P2_M0P56_701	AD25
PL_DDR4_DQ26	IO_L5P_N1P4_M0P64_701	AH24
PL_DDR4_DQ27	IO_L2P_N0P4_M0P58_701	AF25
PL_DDR4_DQ28	IO_L4P_N1P2_M0P62_701	AG23
PL_DDR4_DQ29	IO_L2N_N0P5_M0P59_701	AG25
PL_DDR4_DQ30	IO_L4N_N1P3_M0P63_701	AH23
PL_DDR4_DQ31	IO_L5N_N1P5_M0P65_701	AH25
PL_DDR4_DQ32	IO_L17P_N5P4_M0P88_701	Y22
PL_DDR4_DQ33	IO_L13P_N4P2_M0P80_701	V23
PL_DDR4_DQ34	IO_L16P_N5P2_M0P86_701	Y23
PL_DDR4_DQ35	IO_L13N_N4P3_M0P81_701	W24
PL_DDR4_DQ36	IO_L16N_N5P3_M0P87_701	AA22
PL_DDR4_DQ37	IO_L14P_N4P4_M0P82_701	V24
PL_DDR4_DQ38	IO_L17N_N5P5_M0P89_701	AA21
PL_DDR4_DQ39	IO_L14N_N4P5_M0P83_701	W25
PL_DDR4_DQ40	IO_L19P_N6P2_M0P92_701	V25
PL_DDR4_DQ41	IO_L20P_N6P4_M0P94_701	W27
PL_DDR4_DQ42	IO_L22P_N7P2_M0P98_701	AA28
PL_DDR4_DQ43	IO_L19N_N6P3_M0P93_701	W26
PL_DDR4_DQ44	IO_L20N_N6P5_M0P95_701	Y26
PL_DDR4_DQ45	IO_L23P_N7P4_M0P100_701	AA26
PL_DDR4_DQ46	IO_L22N_N7P3_M0P99_701	AB28
PL_DDR4_DQ47	IO_L23N_N7P5_M0P101_701	AB26
PL_DDR4_DQ48	IO_L2P_N0P4_M0P112_702	P27
PL_DDR4_DQ49	IO_L5P_N1P4_M0P118_702	K27
PL_DDR4_DQ50	IO_L2N_N0P5_M0P113_702	R28
PL_DDR4_DQ51	IO_L4N_N1P3_M0P117_702	L28
PL_DDR4_DQ52	IO_L1P_N0P2_M0P110_702	R27
PL_DDR4_DQ53	IO_L5N_N1P5_M0P119_702	K28
PL_DDR4_DQ54	IO_L1N_N0P3_M0P111_702	T28
PL_DDR4_DQ55	IO_L4P_N1P2_M0P116_702	M27
PL_DDR4_DQ56	IO_L8P_N2P4_M0P124_702	P25
PL_DDR4_DQ57	IO_L10N_N3P3_M0P129_702	L26
PL_DDR4_DQ58	IO_L8N_N2P5_M0P125_702	R26
PL_DDR4_DQ59	IO_L10P_N3P2_M0P128_702	M26
PL_DDR4_DQ60	IO_L7P_N2P2_M0P122_702	T25
PL_DDR4_DQ61	IO_L11N_N3P5_M0P131_702	K26
PL_DDR4_DQ62	IO_L7N_N2P3_M0P123_702	T26
PL_DDR4_DQ63	IO_L11P_N3P4_M0P130_702	J25

QSPI Flash

The core board uses two 256 M bit Q SPI FLASH chips, model MT25QU256ABA1EW9-0SIT, which uses the 1.8 V CMOS voltage standard. Due to its non-volatile characteristics, QSPI FLASH can be used as the boot image of the FPGA system during use . These images mainly include FPGA bit files, soft core application codes and other user data files.

The specific models and related parameters of QSPI FLASH are shown in the table below

bit number	Chip type	capacity	factory
U3,U4	MT25QU256ABA1EW9-0SIT	256MB Bit	Micron

Table 2-5-1 QSPI Flash models and parameters

BANK500 in the PS part of the Versal ACAP chip . In the system design, the MIO port functions of these PS terminals need to be configured as QSPI FLASH interface.

Figure 2- 5-1 QSPI Flash connection diagram

Configure chip pin assignments:

Signal name	Pin name	Pin number
MIO0_QSPI0_SCLK	PMC_MIO0_500	AA1
MIO1_QSPI0_IO1	PMC_MIO1_500	AB1
MIO2_QSPI0_IO2	PMC_MIO2_500	AD1
MIO3_QSPI0_IO3	PMC_MIO3_500	AE1
MIO4_QSPI0_IO0	PMC_MIO4_500	AF1
MIO5_QSPI0_SS_B	PMC_MIO5_500	AG1
MIO7_QSPI1_SS_B	PMC_MIO7_500	AG2
MIO8_QSPI1_IO0	PMC_MIO8_500	AE2
MIO9_QSPI1_IO1	PMC_MIO9_500	AD2
MIO10_QSPI1_IO2	PMC_MIO10_500	AC2
MIO11_QSPI1_IO3	PMC_MIO11_500	AB2
MIO12_QSPI1_SCLK	PMC_MIO12_500	AA3

eMMC Flash

The V100 core board is equipped with a large-capacity 8GB eMMC FLASH chip, model MTFC8GAKAJCN-4M . It supports the JEDEC e-MMC V5.0 standard HS-MMC interface, and the level supports 1.8V or 3.3V . The data width of eMMC FLASH and ACAP connections is 8bit. Due to the large capacity and non-volatile characteristics of eMMC FLASH , it can be used as a large-capacity storage device in the ACAP system , such as storing ARM applications , system files and other user data files. The specific models and related parameters of eMMC FLASH are shown in Table 2-6-1 .

bit number	Chip type	capacity	factory
U8	MTFC8GAKAJCN-4M	8G Byte	Micron

Table 2-6-1 _ _ eMMC Flash model and parameters

eMMC FLASH is connected to the PMC MIO port of BANK50 1 of the PS part of Versal ACAP. In the system design, these PMC MIO port functions need to be configured as EMMC interfaces. Figure 2-6-1 is eMMC The part of Flash in the schematic.

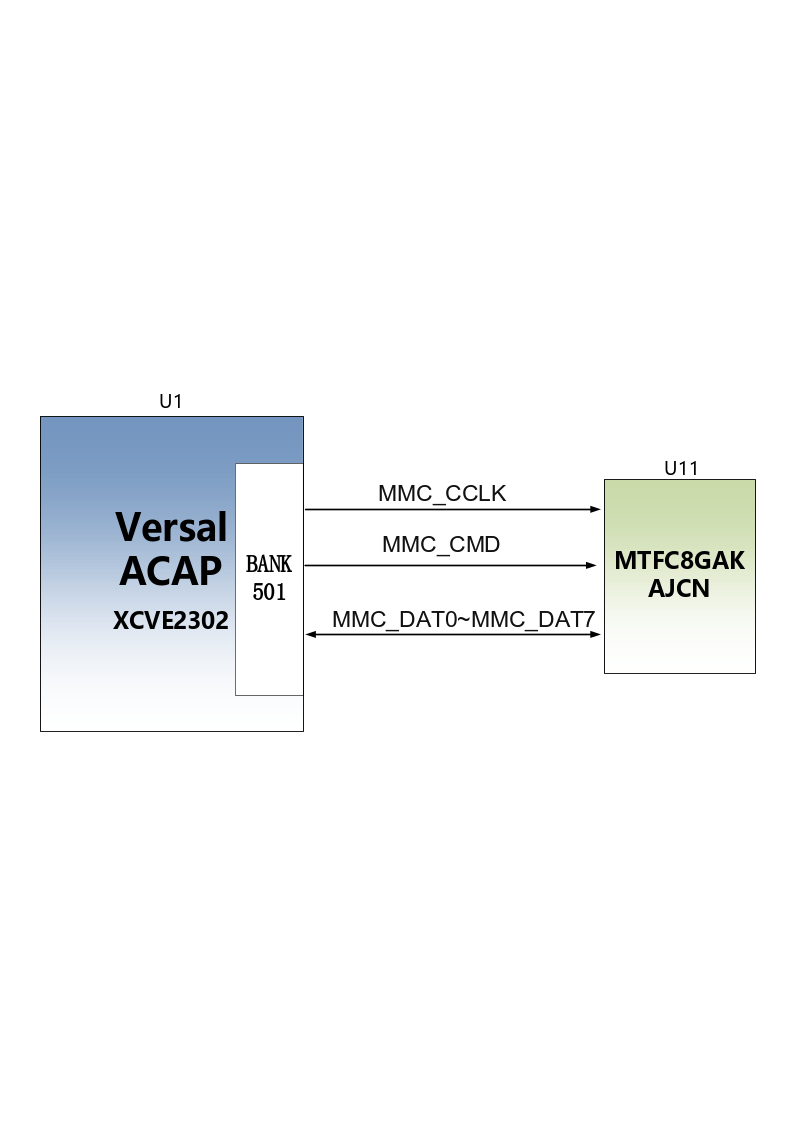

Figure 2- 6-1 eMMC Flash connection diagram

Configure chip pin assignments:

Signal name	Pin name	Pin number
MMC_CCLK	PMC_MIO38_501	AE8
MMC_CMD	PMC_MIO40_501	AB8
MMC_DAT0	PMC_MIO41_501	AA8
MMC_DAT1	PMC_MIO42_501	AA9
MMC_DAT2	PMC_MIO43_501	AC9
MMC_DAT3	PMC_MIO44_501	AD9
MMC_DAT4	PMC_MIO45_501	AE9
MMC_DAT5	PMC_MIO46_501	AF9
MMC_DAT6	PMC_MIO47_501	AF10
MMC_DAT7	PMC_MIO48_501	AD10
MMC_RSTN	PMC_MIO49_501	AC10

LED light

There is one red power indicator light (PWR) and one configuration LED light (DONE) on the V100 core board. When the core board is powered, the power indicator light will light up; when the FPGA configures the program, the configuration LED light will light up. The schematic diagram of LED light hardware connection is shown in Figure 2-7-1:

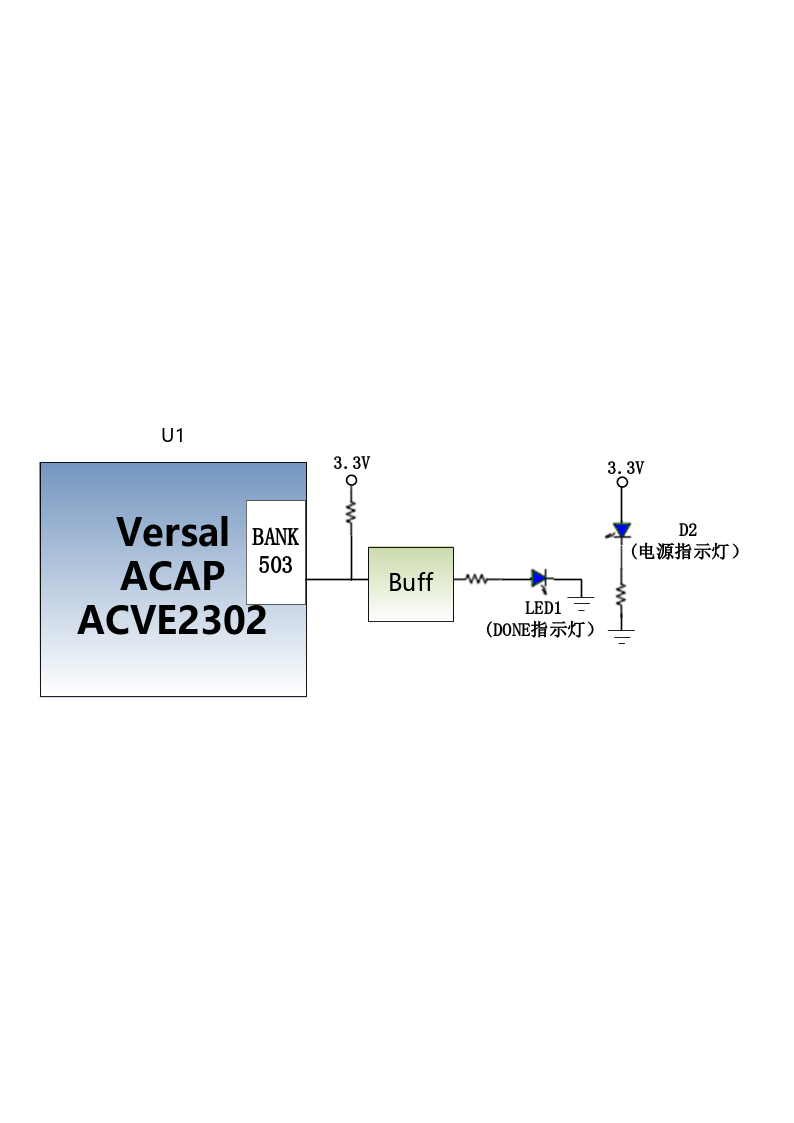

Figure 2-7-1 Development board LED light hardware connection diagram

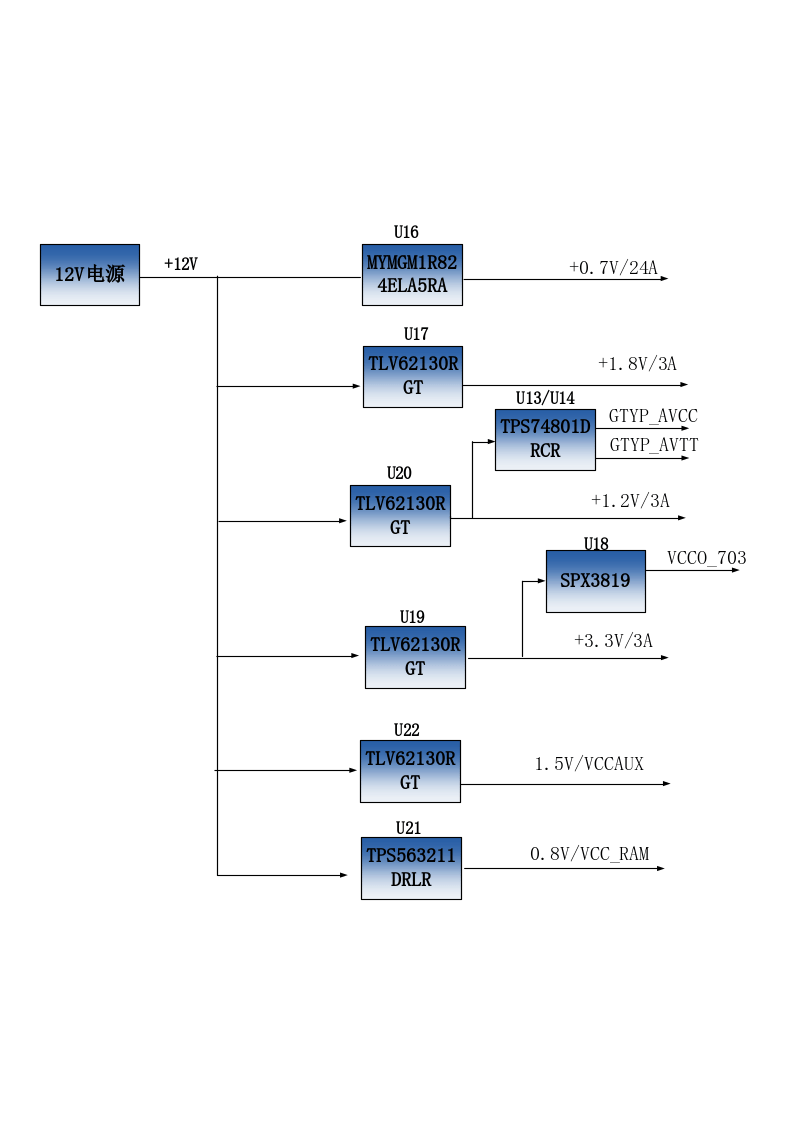

power supply

the V100 core board is 7.5V~15V (typical value 12V), and the core board is powered by connecting to the base board. The core board uses the MYMGM1R824ELA5RA power chip to provide core power 0.7V for XCVE2302. In addition, the power supply for BANK503, BANK700, and BANK302 is generated by the DCDC chip TLV62130RGT. The power supply for BANK703 and GTY transceivers is generated by the LDO chip.

Because the power supply of Versal ACAP FPGA has power-on sequence requirements, in the circuit design, we have designed the power-on sequence according to the power requirements of the chip as follows:

1). VCCIO503(3.3V), VCCO302(3.3V), VCCIO_501/502/503 ( 1. 8 V ),

VCCIO700/701/702(1.2V)

1. VCCINT/VCC_PMC/VCC_PSFP/VCC_PSLP(0.7V)

2. VCCBRAM /VCC_SOC/VCC_IO ( 0.8 V)

3. VCCAUX/VCCAUX_PMC/VCCAUX_SMON( 1. 5 V )

5.GTYP_AVCC (0.9V)

6. GTYP_AVTT(1.2V)

Extension ports

A total of 2 high-speed expansion ports are extended on the back of the core board. Two 160Pin inter-board connectors (Samtec: ADF6-40-03.5-L-4-2-A-TR ) are used to connect to the bottom board. The FPGA IO port passes through Differential wiring is connected to these two expansion ports. The PIN pitch of the connector is 0.5mm, and it is configured with the female connector on the base plate to achieve high-speed data communication.

Expansion port U23A

The 160Pin connector U23 is used to connect the VCCIN power supply (+12V), ground and the common IO of the FPGA on the backplane. It should be noted here that the A and B columns of U23 are connected to the IO ports of BANK702 and PS. The pin assignment of the U23_AB expansion port is shown in Table 2-9-1:

2-9-1 Table: Expansion port U23_AB pin assignment

U23 pin	Signal name	FPGA Pin nu mber	le vel st and ard	U23 Pin	Signal name	FPGA Pin nu mber	le vel st and ard
A1	B702_L17_N	J24	1 .2V	B1	B702_L12_N	T24	1 .2V
A2	B702_L17_P	K23	1 .2V	B2	B702_L12_P	U23	1 .2V
A3	GND		l and	B3	GND		l and
A4	B702_L25_N	L25	1 .2V	B4	B702_L16_N	K24	1 .2V
A5	B702_L25_P	L24	1 .2V	B5	B702_L16_P	L23	1 .2V
A6	GND		l and	B6	GND		l and
A7	B702_L24_N	N24	1 .2V	B7	B702_L21_N	M21	1 .2V
A8	B702_L24_P	N23	1 .2V	B8	B702_L21_P	N21	1 .2V
A9	GND		l and	B9	GND		l and
A10	B702_L22_N	L22	1 .2V	B10	B302_L5_N	C12	3 .3V
A11	B702_L22_P	K21	1 .2V	B11	B302_L5_P	D11	3 .3V
A12	GND		l and	B12	GND		l and
A13	B302_L2_N	D14	3 .3V	B13	B302_L0_N	E14	3 .3V
A14	B302_L2_P	E13	3 .3V	B14	B302_L0_P	F14	3 .3V
A15	GND		l and	B15	GND		l and
A16	PS_MIO31	AD6	1 .8V	B16	PS_MIO35	AC7	1 .8V
A17	PS_MIO25	Y4	1 .8V	B17	PS_MIO37	AE7	1 .8V
A18	GND		l and	B18	GND		l and
A19	PS_MIO26	AA5	1 .8V	B19	PS_MIO22	AD4	1 .8V
A20	PS_MIO33	AA6	1 .8V	B20	PS_MIO19	AH4	1 .8V
A21	GND		l and	B21	GND		l and
A22	PS_MIO32	AB6	1 .8V	B22	PS_MIO20	AF4	1 .8V
A23	PS_MIO27	AB5	1 .8V	B23	PS_MIO28	AC5	1 .8V
A24	GND		l and	B24	GND		l and
A25	PS_MIO14	AC3	1 .8V	B25	PS_MIO23	AC4	1 .8V
A26	PS_MIO13	AB3	1 .8V	B26	PS_MIO24	AA4	1 .8V
A27	GND		l and	B27	GND		l and
A28	LPD_MIO24	Y8	1 .8V	B28	LPD_MIO4	Y2	1 .8V
A29	LPD_MIO23	Y7	1 .8V	B29	LPD_MIO3	Y1	1 .8V
A30	GND		l and	B30	GND		l and
A31	LPD_MIO5	W2	1 .8V	B31	LPD_MIO18	W5	1 .8V
A32	LPD_MIO2	W1	1 .8V	B32	LPD_MIO12	W4	1 .8V
A33	GND		l and	B33	GND		l and
A34	LPD_MIO7	U2	1 .8V	B34	LPD_MIO1	U1	1 .8V
A35	LPD_MIO6	V2	1 .8V	B35	LPD_MIO13	V4	1 .8V
A36	GND		l and	B36	GND		l and
A37	FPGA_TDI	AG10	1 .8V	B37	FPGA_TCK	AH10	1 .8V
A38	FPGA_TMS	AH9	1 .8V	B38	FPGA_TDO	AF8	1 .8V
A39	GND		l and	B39	GND		l and
A40	+12V		+12V	B40	+12V		+12V

Expansion port U23_CD

The pin assignment of the U23B expansion port is shown in Table 2-9-2:

2-10-2 Table: Expansion port U23_CD pin assignment

U23 pin	Signal name	FPGA Pin n umber	l evel stan dard	U23 Pin	Signal name	FPGA Pin nu mber	le vel st and ard
C1	B702_L13_N	R24	1.2V	D1	B702_L14_N	P24	1 .2V
C2	B702_L13_P	T23	1.2V	D2	B702_L14_P	R23	1 .2V
C3	GND		land	D3	GND		l and
C4	B702_L26_N	M25	1.2V	D4	B702_L18_N	U22	1 .2V
C5	B702_L26_P	N25	1.2V	D5	B702_L18_P	V21	1 .2V
C6	GND		land	D6	GND		l and
C7	B702_L23_N	J22	1.2V	D7	B702_L19_N	R22	1 .2V
C8	B702_L23_P	J21	1.2V	D8	B702_L19_P	T21	1 .2V
C9	GND		land	D9	GND		l and
C10	B702_L15_N	M23	1.2V	D10	B702_L20_N	P22	1 .2V
C11	B702_L15_P	M22	1.2V	D11	B702_L20_P	R21	1 .2V
C12	GND		land	D12	GND		l and
C13	B302_L3_N	D12	3.3V	D13	B302_L4_N	E11	3 .3V
C14	B302_L3_P	E12	3.3V	D14	B302_L4_P	F11	3 .3V
C15	GND		land	D15	GND		l and
C16	PS_MIO34	AB7	1.8V	D16	B302_L6_N	C10	3 .3V
C17	PS_MIO30	AE6	1.8V	D17	B302_L6_P	D10	3 .3V
C18	GND		land	D18	GND		l and
C19	PS_MIO29	AD5	1.8V	D19	PS_MIO15	AE3	1 .8V
C20	PS_MIO18	AH3	1.8V	D20	PS_MIO21	AE4	1 .8V
C21	GND		land	D21	GND		l and
C22	PS_MIO17	AG3	1.8V	D22	PS_MIO51	AA10	1 .8V
C23	PS_MIO16	AF3	1.8V	D23	PS_MIO50	AB10	1 .8V
C24	GND		land	D24	GND		l and
C25	LPD_MIO22	T6	1.8V	D25	PS_MIO36	AD7	1 .8V
C26	LPD_MIO15	T5	1.8V	D26	LPD_MIO20	W6	1 .8V
C27	GND		land	D27	GND		l and
C28	LPD_MIO19	Y6	1.8V	D28	LPD_MIO21	U6	1 .8V
C29	LPD_MIO16	U5	1.8V	D29	LPD_MIO25	Y9	1 .8V
C30	GND		land	D30	GND		l and
C31	LPD_MIO11	Y3	1.8V	D31	LPD_MIO8	T3	1 .8V
C32	LPD_MIO17	V5	1.8V	D32	LPD_MIO14	T4	1 .8V
C33	GND		land	D33	GND		l and
C34	LPD_MIO10	V3	1.8V	D34	LPD_MIO0	T1	1 .8V
C35	VCC_BATT			D35	LPD_MIO9	U3	1 .8V
C36	GND		land	D36	GND		l and
C37	PS_MODE0	AG8	3.3V	D37	PS_MODE2	AG6	3 .3V
C38	PS_MODE1	AG7	3.3V	D38	PS_MODE3	AG5	3 .3V
C39	GND		land	D39	GND		l and
C40	+12V		+12V	D40	+12V		+12V

Expansion port U24_AB

The 160Pin connector U24 is used to expand the FPGA’s BANK302, the common IO of BANK703, and the transceiver. The pin assignment of the U24_AB expansion port is shown in Table 2-9-3:

2-9-3 Table: Expansion port U24_AB pin assignment

U24 pin	Signal name	FPGA Pin n umber	le vel st and ard	U24 Pin	Signal name	FPGA Pin nu mber	le vel st and ard
A1	GND		l and	B1	GND		l and
A2	104_TX2_N	C4	1 .2V	B2	104_TX0_N	E4	1 .2V
A3	104_TX2_P	C5	1 .2V	B3	104_TX0_P	E5	1 .2V
A4	GND		l and	B4	GND		l and
A5	104_TX3_N	B7	1 .2V	B5	104_TX1_N	D7	1 .2V
A6	104_TX3_P	B8	1 .2V	B6	104_TX1_P	D8	1 .2V
A7	GND		l and	B7	GND		l and
A8	104_CLK1_N	F6	1 .2V	B8	104_CLK0_N	H6	1 .2V
A9	104_CLK1_P	F7	1 .2V	B9	104_CLK0_P	H7	1 .2V
A10	GND		l and	B10	GND		l and
A11	103_TX2_N	J4	1 .2V	B11	103_TX3_N	G4	1 .2V
A12	103_TX2_P	J5	1 .2V	B12	103_TX3_P	G5	1 .2V
A13	GND		l and	B13	GND		l and
A14	103_TX0_N	N4	1 .2V	B14	103_TX1_N	L4	1 .2V
A15	103_TX0_P	N5	1 .2V	B15	103_TX1_P	L5	1 .2V
A16	GND		l and	B16	GND		l and
A17	GND		l and	B17	GND		l and
A18	B302_L10_N	A14	3 .3V	B18	B302_L9_N	A13	3 .3V
A19	B302_L10_P	B13	3 .3V	B19	B302_L9_P	B12	3 .3V
A20	GND		l and	B20	GND		l and
A21	B302_L1_N	C13	3 .3V	B21	B703_L20_N	D21	1 .5V
A22	B302_L1_P	C14	3 .3V	B22	B703_L20_P	D20	1 .5V
A23	GND		l and	B23	GND		l and
A24	B703_L21_N	C21	1 .5V	B24	B703_L18_N	H22	1 .5V
A25	B703_L21_P	B20	1 .5V	B25	B703_L18_P	G21	1 .5V
A26	GND		l and	B26	GND		l and
A27	B703_L16_N	B23	1 .5V	B27	B703_L24_N	F24	1 .5V
A28	B703_L16_P	C23	1 .5V	B28	B703_L24_P	F23	1 .5V
A29	GND		l and	B29	GND		l and
A30	B703_L8_N	E26	1 .5V	B30	B703_L26_N	D26	1 .5V
A31	B703_L8_P	F26	1 .5V	B31	B703_L26_P	D25	1 .5V
A32	GND		l and	B32	GND		l and
A33	B703_L1_N	G28	1 .5V	B33	B703_L7_N	G26	1 .5V
A34	B703_L1_P	H27	1 .5V	B34	B703_L7_P	G25	1 .5V
A35	GND		l and	B35	GND		l and
A36	B703_L6_N	J26	1 .5V	B36	B703_L0_N	H28	1 .5V
A37	B703_L6_P	H25	1 .5V	B37	B703_L0_P	J27	1 .5V
A38	GND		l and	B38	GND		l and
A39	B703_L5_N	B28	1 .5V	B39	B703_L12_N	H24	1 .5V
A40	B703_L5_P	C27	1 .5V	B40	B703_L12_P	H23	1 .5V

Expansion port U24_CD

The pin assignment of the U24_CD expansion port is shown in Table 2-9-4:

2-9-4 Table: Expansion port U24_CD pin assignment

U24 pin	Signal name	FPGA Pin n umber	le vel st and ard	U24 Pin	Signal name	FPGA Pin nu mber	le vel st and ard
C1	GND		l and	D1	GND		l and
C2	104_RX1_N	D1	1 .2V	D2	104_RX0_N	F1	1 .2V
C3	104_RX1_P	D2	1 .2V	D3	104_RX0_P	F2	1 .2V
C4	GND		l and	D4	GND		l and
C5	104_RX3_N	A4	1 .2V	D5	104_RX2_N	B1	1 .2V
C6	104_RX3_P	A5	1 .2V	D6	104_RX2_P	B2	1 .2V
C7	GND		l and	D7	GND		l and
C8	103_CLK1_N	K6	1 .2V	D8	103_CLK0_N	M6	1 .2V
C9	103_CLK1_P	K7	1 .2V	D9	103_CLK0_P	M7	1 .2V
C10	GND		l and	D10	GND		l and
C11	103_RX2_N	K1	1 .2V	D11	103_RX3_N	H1	1 .2V
C12	103_RX2_P	K2	1 .2V	D12	103_RX3_P	H2	1 .2V
C13	GND		l and	D13	GND		l and
C14	103_RX1_N	M1	1 .2V	D14	103_RX0_N	P1	1 .2V
C15	103_RX1_P	M2	1 .2V	D15	103_RX0_P	P2	1 .2V
C16	GND		l and	D16	GND		l and
C17	GND		l and	D17	GND		l and
C18	B302_L8_N	A11	3 .3V	D18	B302_L7_N	A10	3 .3V
C19	B302_L8_P	B11	3 .3V	D19	B302_L7_P	B10	3 .3V
C20	GND		l and	D20	GND		l and
C21	B703_L19_N	F21	1 .5V	D21	B703_L13_N	G23	1 .5V
C22	B703_L19_P	E20	1 .5V	D22	B703_L13_P	F22	1 .5V
C23	GND		l and	D23	GND		l and
C24	B703_L14_N	E23	1 .5V	D24	B703_L22_N	A21	1 .5V
C25	B703_L14_P	E22	1 .5V	D25	B703_L22_P	A20	1 .5V
C26	GND		l and	D26	GND		l and
C27	B703_L9_N	B25	1 .5V	D27	B703_L23_N	B22	1 .5V
C28	B703_L9_P	C25	1 .5V	D28	B703_L23_P	C22	1 .5V
C29	GND		l and	D29	GND		l and
C30	B703_L25_N	F25	1 .5V	D30	B703_L17_N	A24	1 .5V
C31	B703_L25_P	E24	1 .5V	D31	B703_L17_P	A23	1 .5V
C32	GND		l and	D32	GND		l and
C33	B703_L15_N	C24	1 .5V	D33	B703_L10_N	A26	1 .5V
C34	B703_L15_P	D24	1 .5V	D34	B703_L10_P	A25	1 .5V
C35	GND		l and	D35	GND		l and
C36	B703_L2_N	F28	1 .5V	D36	B703_L11_N	B27	1 .5V
C37	B703_L2_P	G27	1 .5V	D37	B703_L11_P	B26	1 .5V
C38	GND		l and	D38	GND		l and
C39	B703_L4_N	C28	1 .5V	D39	B703_L3_N	E28	1 .5V
C40	B703_L4_P	D27	1 .5V	D40	B703_L3_P	E27	1 .5V

Structure diagram

Front view (TOP View)
